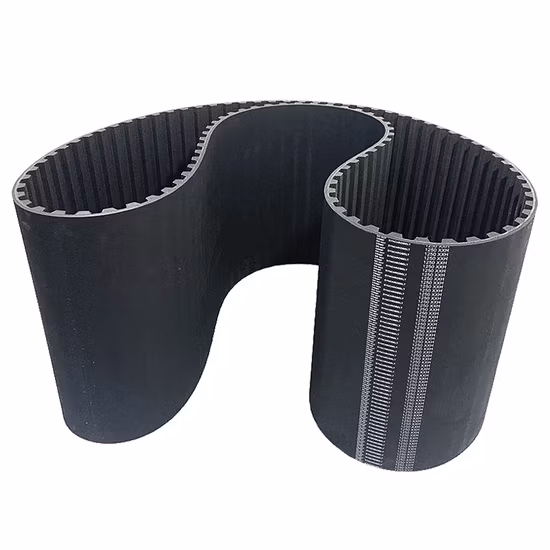

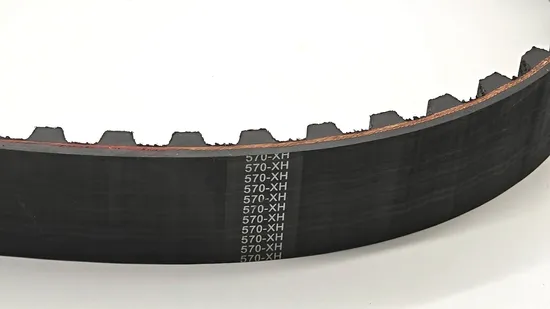

Good Performance T Type Industrial Rubber Timing Belt

Basic Info

Color	Black
Certificate	ISO/Ts16949
Working Temperature	-25ºC --- +110ºC
Transport Package	Carton
Origin	China
HS Code	4010320000

Product Description

Property--- Excellent dynamic curve performance-- Crack resistant-- Ozone resistant-- Anti-aging-- Heat resistant-- Wear resistant

Structure
Belt body: high quality synthetic CR rubberReinforcement: excellent quality fiberglass cordBelt teeth: protected by highly wear resistant nylon elasticfabric

Double sided timing belt
Double sided timing belt can be divided into two types:-- DA with symmetrical teeth-- DB with staggered teeth

Timing belt sleeve
Height: 450mmMOQ: 1 sleeveSleeve cutting machine is available

Specification

T-toothedtiming belt	TYPE	Pitch	Booth adge	Bottom tooth thickness	Tooth height	Fillet	Tip	Belt thickness	teeth number range	Pitch length
		Pb	2y°	s	hg	rr	ra	H
	MXL	2.023	40	1.14	0.51	0.13	0.13	1.14	43~2044	87.38~4153.41
	XXL	3.175	50	1.73	0.76	0.20	0.20	1.52	46~124	146.05~393.70
	XL	5.085		2.57	1.27	0.38	0.38	2.3	22~510	111.76~2590.80
	L	9.525	40	4.65	1.91	0.51	0.51	3.6	23~530	219.08~5048.25
	H	12.700		6.12	2.29	1.02	1.02	4.3	29~440	368.30~5588.00
	XH	22.225		12.57	6.35	1.57	1.57	11.2	53~220	1177.93~4889.50
	XXH	31.750		19.05	9.53	2.29	2.29	15.7	56~144	1778.00~4572.00
	T2.5	2.5	40	1.50	0.70	0.2	0.2	1.3	42~312	105.00~780.00
	T5	5		2.65	1.20	0.4	0.4	2.2	30~400	150.00~2000.00
	T10	10		5.30	2.50	0.6	0.6	4.5	34~536	340.00~5360.00
	T20	20		10.15	5.00	0.8	0.8	8.0	61~181	1220.00~3620.00

Arc synchronous belt	TYPE	Pitch	Booth adge	Bottom tooth thickness	Tooth height	Fillet	Tip	Belt thickness	teeth number range	Pitch length
		Pb	2y°	s	hg	rr	ra	H
	3M	3	14	1.78	1.17	0.24-0.30	0.87	2.4	35~1000	105.00~3000.00
	5M	5		3.05	2.06	0.40-0.44	1.49	3.8	35~852	175.00~4260.00
	8M	8		5.15	3.36	0.64-0.76	2.46	6.0	36~565	288.00~4520.00
	14M	14		9.40	6.02	1.20-1.35	4.50	10.0	56~340	784.00~4760.00
	20M	20		14.00	8.40	1.77-2.01	6.50	13.20	100~260	2000.00~5200.00

STPD/STS-toothed timing belt	TYPE	Pitch	Bottom tooth thickness	Tooth height	Fillet radius	Fillet	Tip	Belt thickness	teeth number range	Pitch length
		Pb	s	hg	rbb	rr	ra	H
	S2M	2	1.3	0.76	1.3	0.20	0.20	1.36	44~1914	88.00~3828.00
	S3M	3	1.95	1.14	1.95	0.30	0.30	1.94	41~500	123.00~1500.00
	S4.5M	4.5	2.93	1.71	2.93	0.45	0.45	2.81	40~201	180.00~904.50
	S5M	5	3.25	1.91	3.25	0.50	0.50	3.41	30~560	150.00~2800.00
	S8M	8	5.20	3.05	5.20	0.80	0.80	5.30	53~500	424.00~4000.00
	S14M	14	9.10	5.30	9.10	1.40	1.40	10.2	69~322	966.00~4508.00

RPP/HPPD-toothed timing belt	TYPE	Pitch	Bottom tooth thickness	Tooth height	Belt thickness	teeth number range	Pitch length
		Pb	s	hg	H
	P2M	2	1.30	0.73	1.3	56~612	112.00~1224.00
	P3M	3	1.95	1.09	2.1	30~621	90.00~1863.00
	P5M	5	3.25	1.81	3.6	36~400	180.00~2000.00
	P8M	8	5.20	2.90	5.5	40~550	320.00~4400.00
	P14M	14	9.50	6.00	10.0	69~327	966.00~4578.00
